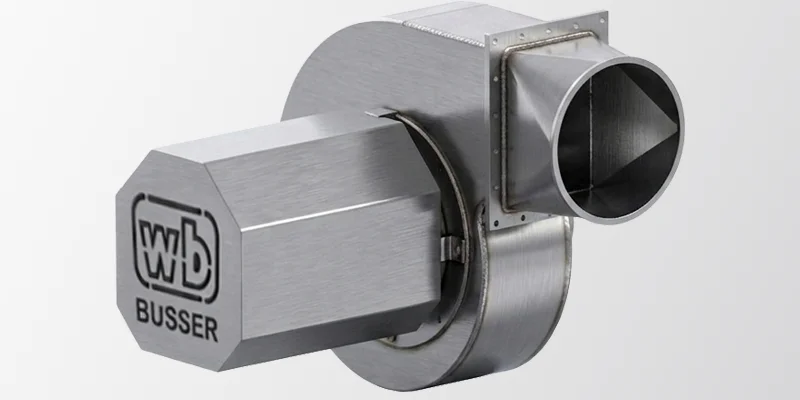

Radial fan / ventilator 250mm stainless steel right-hand rotation

Article number: eb24-LLU-000007

Radial fan / ventilator 250mm stainless steel, motor 2.2kW, right-hand rotation, with DN200 adapter

Stainless steel
Optimal air delivery
DN200 adapter for piping system integration
For ventilation / deventilation or steam extraction
Right-hand rotation

Price on request

Quantity:

Request a quote +49 (0) 4207 668 380

B2B enquiry · personal quote · Mon–Fri 07:00–15:45

Description

Radial fans and ventilators 250mm stainless steel are indispensable components in the food industry for reliable ventilation solutions.

Radial ventilators with 2.2kW motor power provide optimal air delivery. These robust systems meet strict requirements and guarantee the highest hygiene standards in production environments where food safety is paramount.

250mm ventilators in stainless steel design are used in bakeries, dairies and meat processing.

The fully stainless steel housing and fan wheel ensure corrosion resistance and easy cleaning. The DN200 adapter enables flexible piping system integration. The 2.2kW ventilator with DN200 connection is optimally dimensioned for applications requiring continuous, maintenance-free performance.

Technical data

Design	Stainless steel
Mains connection	380V
Power	2.2kW
Fan wheel	250mm
Rotation direction	Right-hand rotation

Compatibility

Piping DN200

Washing machines of the wb500 series with 200 fan right-hand rotation

Radial fans and radial ventilators 250mm stainless steel right-hand rotation are indispensable components in the food industry. These robust ventilators with 2.2kW motor and DN200 adapter meet the highest hygiene standards and guarantee reliable air delivery in sensitive production environments. With their corrosion-resistant stainless steel design, they offer maximum service life and process reliability for your applications.

Used in food production, beverage industry and pharmaceuticals, these fans also meet the highest requirements. The high-quality stainless steel material is maintenance-friendly, easy to clean and resistant to cleaning agents. Our specialists at WB food tec are happy to advise you on the optimal selection for your specific requirements.

The design uses stainless steel 1.4301 for all pressure-bearing components and ensures corrosion protection even under the most aggressive conditions. High-quality mechanical seals and ball-bearing shafts minimize wear and maintenance requirements considerably. The aerodynamically optimized impeller geometry enables efficiencies of up to 85% with low energy consumption. Regular inspections of the sealing systems ensure consistent performance over many years.

In food production, such systems are used for process air supply, cooling of fermentation equipment and blow-out processes. Contact WB food tec now for a comprehensive needs analysis and a customized offer for your production process.
